Description

SPECIFICATIONS



Amp Hours: 100Ah



Application: High Drain Devices, Solar/Wind Devices, RV Battery, On/Off Grid Solar System

Battery Included: Yes

Battery/Cell Classification: Lithium Iron Phosphate, LiFePO4

Brand Name: ECO－WORTHY

Capacity（Ah）: 100

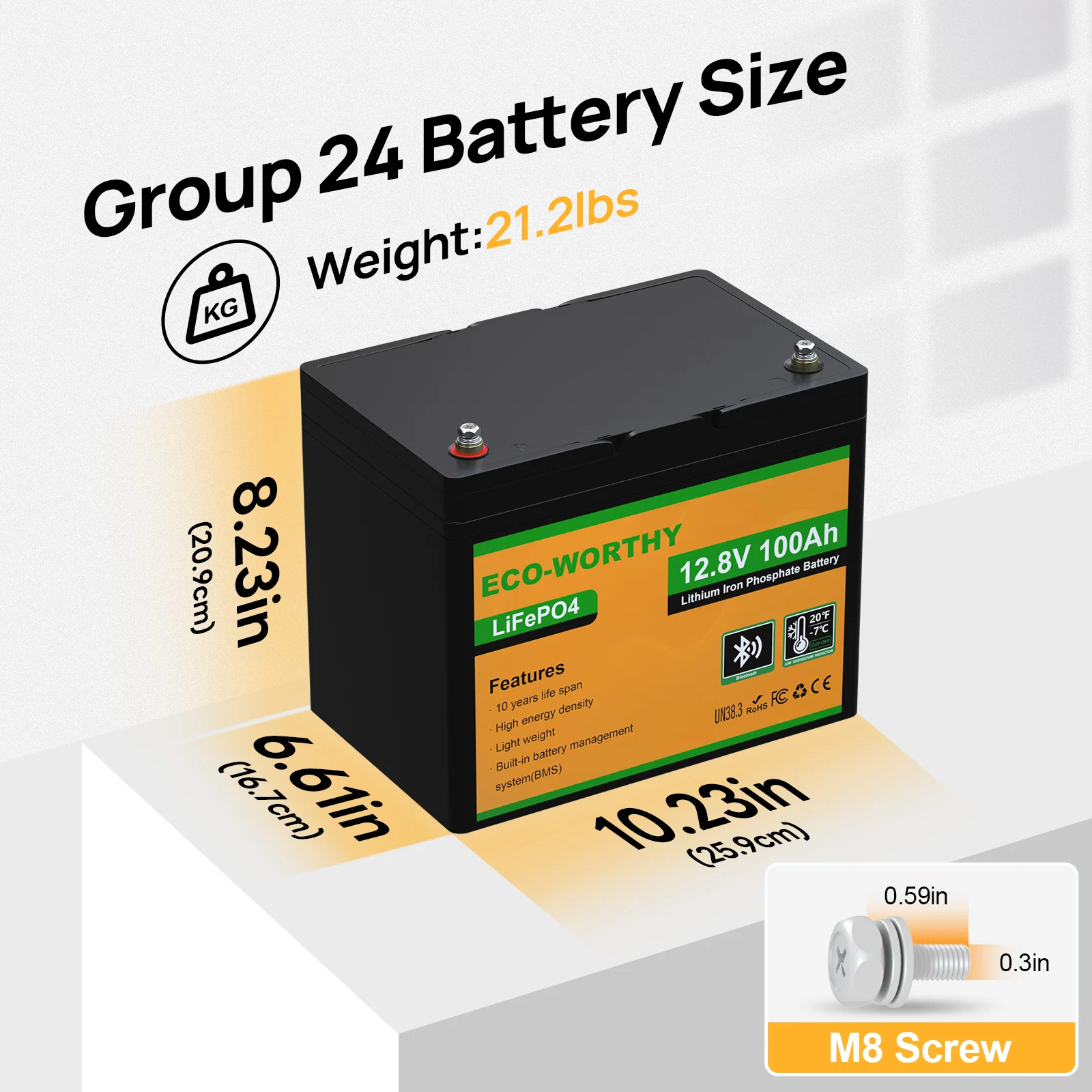

Cell Dimension: 10.23 x 6.61 x 8.23inches

Certification: NONE

Charging Mode: CC CV

Charging Temperature: 32~131℉/0~55 ℃

Chemical Composition: Lithium Iron Phosphate (LiFePO4)

Color: Black

Country/Region of Manufacture: China

Current Type: AC/DC

Discharging Temperature: -4~131 ℉ / -20 ~55 ℃

Energy: 1280Wh

High-concerned chemical: None

Low temperature protection: Yes

Manufacturer Warranty: 3years

Marke: ECO-WORTHY

Maximum Input Voltage: 12.8V

Maximum continuous charge: 100A

Maximum continuous discharge: 100A

Maximum operational current: 1C

Maximum operational voltage: 14.6V

Model Number: L13080202112-2

Nominal Voltage: 12.8V

Number of series and parallel connection: 4P4S

Power Source: Solar

Rated Capacity: 100Ah

Short circuit protection: Yes

Standard charge: 50A

Standard discharge: 50A

Temperature Protection: Yes

Type: Lithium Battery

Voltage: 12V

Voltage at end of Discharge: 10V

Warranty Period: 36 Months

Weight: 23.1Ibs
